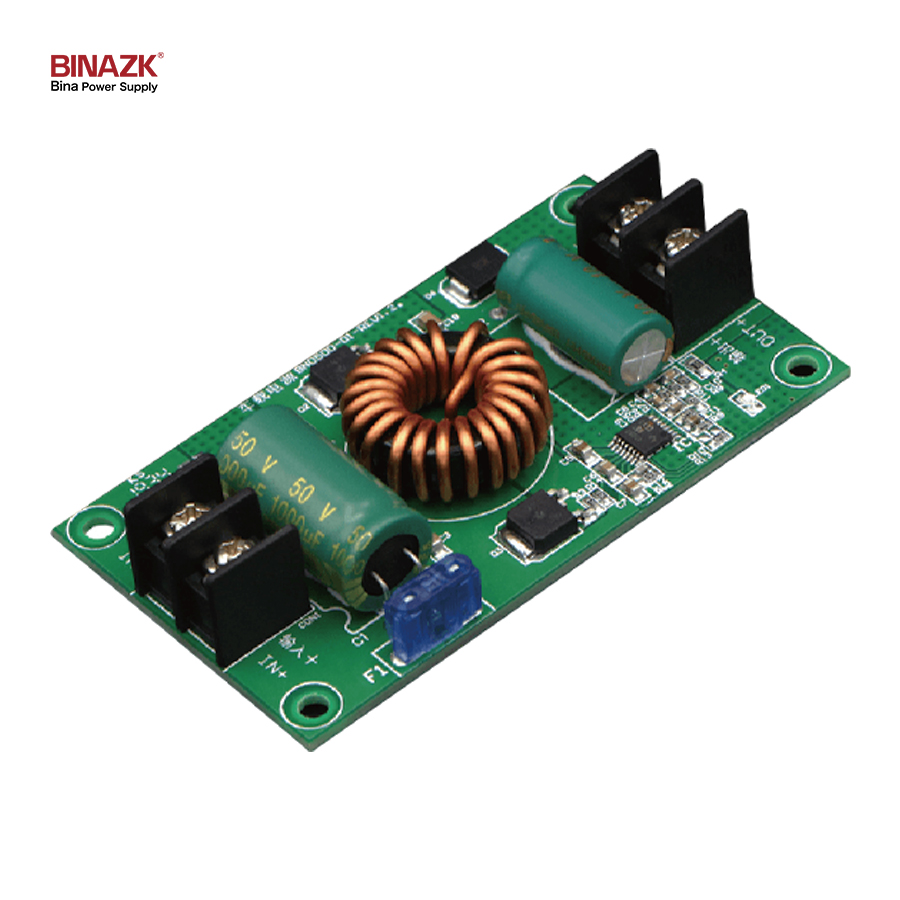

Bare board power supply 50W BN050D5-02

This vehicle display power supply is specifically designed for harsh automotive environments. Its bare-board mounting structure saves space and facilitates integration into various vehicle display systems. The product boasts excellent ultra-low temperature start-up capabilities, operating stably in extreme environments down to -40°C, ensuring normal vehicle startup and display in cold regions. All power supplies undergo 100% full-load aging tests, significantly improving long-term reliability and stability, and effectively reducing the failure rate. A built-in green LED indicator displays the power supply's operating status in real time, facilitating quick diagnosis and maintenance. This power supply is widely applicable to applications such as in-vehicle central control screens, rear-seat entertainment screens, and instrument panel displays, meeting automotive-grade high safety and performance requirements, making it an ideal power backup solution for in-vehicle display systems.

Input characteristic：

Input voltage range：9～36Vdc

Power frequency range：80～120KHz

Maximum input current：6.2A MAX

Full load efficiency：≥89%

Input inrush current(cold start)：Less than 100A, cold start

Output characteristics：

Output voltage：5V

Output voltage error range：±3%；4.85V～5.15V

Output current：0～10A

Maximum output power：50W

Ripple and noise：200mVp-p MAX

Output characteristics：

Power regulation：± 1%

Load regulation：±2%

Boot delay time：≤ 3S/12Vdc @ full load

Output climb time：0.1～100mS/12Vdc @ full load

Output hold time：≥10mS/12Vac @ 80% of full load

Protective features：

Output overcurrent protection

Output short circuit protection
