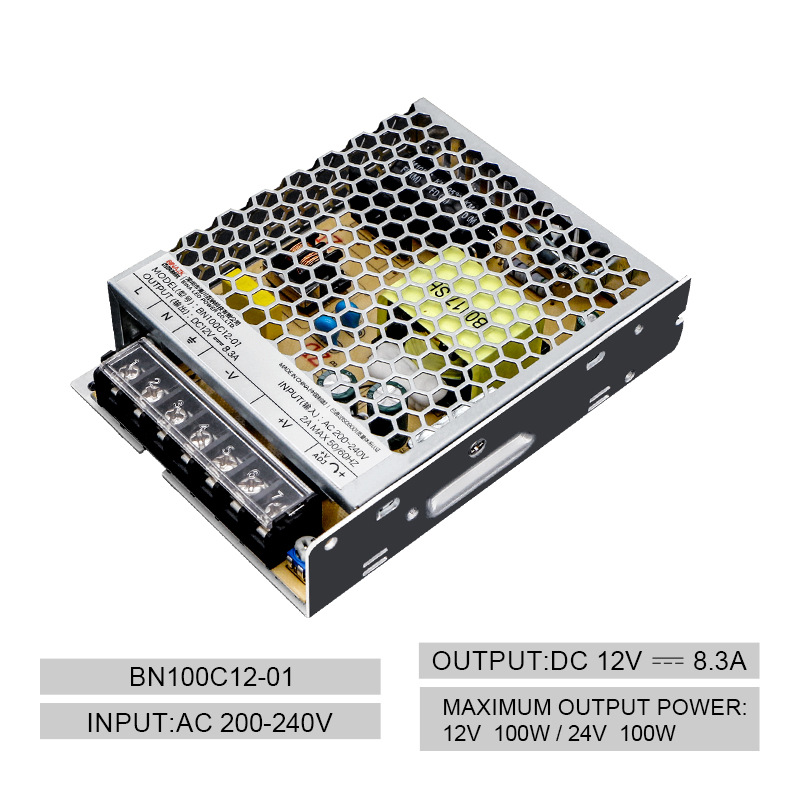

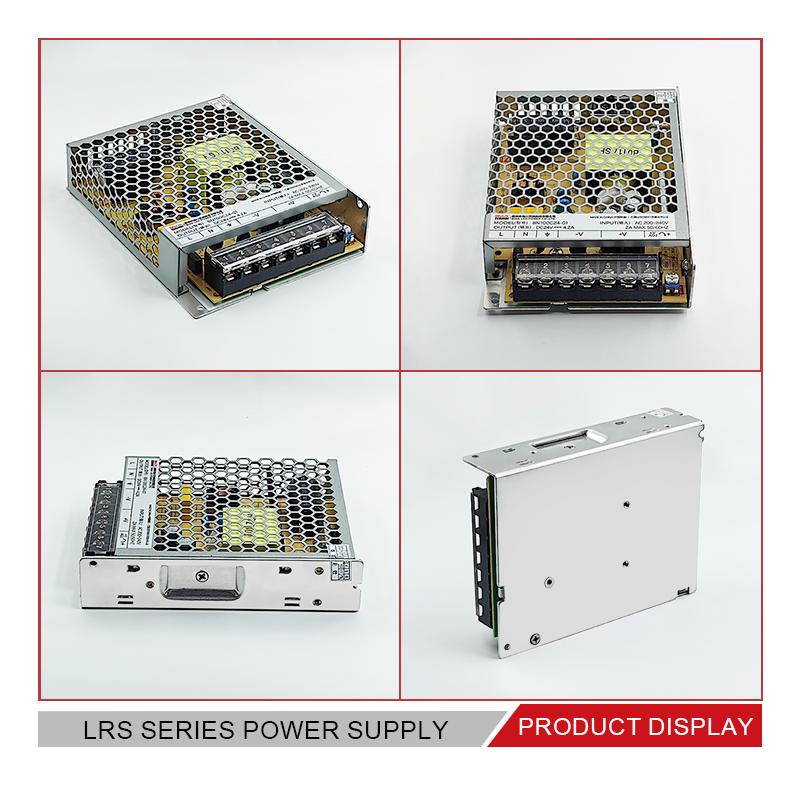

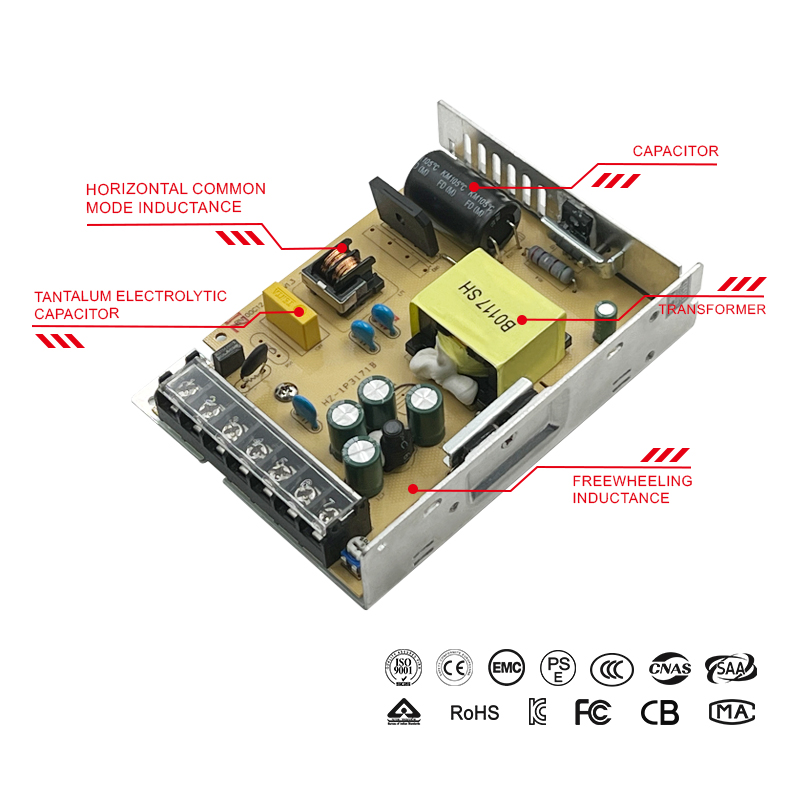

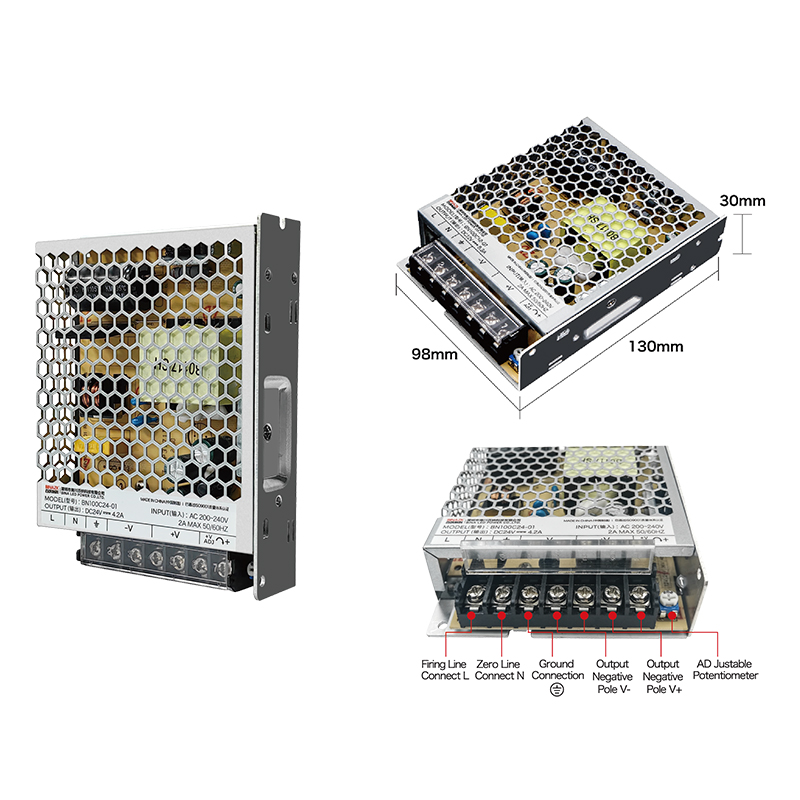

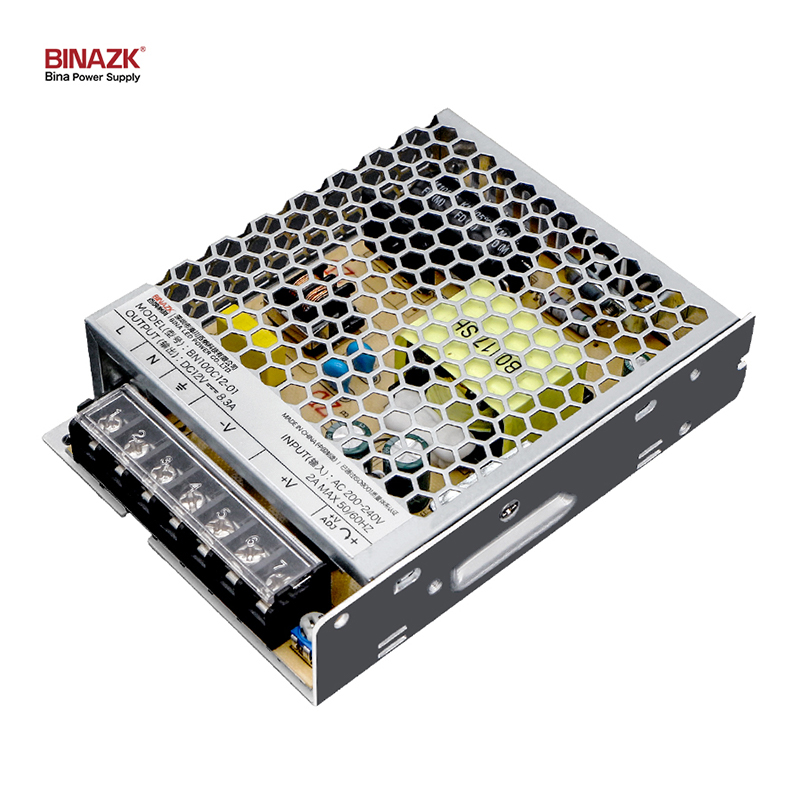

BN100C12-01

Power model

BN100C12-01

BN100C24-01

item

function

Detailed parameters

input

characteristic

Input voltage range

200-240Vac

Power frequency range

47～63Hz

Maximum input current

3A MAX

power factor

≥0.5

Full load efficiency

≥83%

≥86%

Input impulse current (cold start)

Less than 40A, cold start

Leakage current

＜3.5mA/240Vac

output

Characteristic

output voltage

12V

24V

Output voltage error range

±5%

±5%

11.4V-12.6V

22.8V-25.2V

Output current

0-8.3A

0-4.1A

Maximum power output

100W

100W

Ripple and noise

300mVp-p MAX

300mVp-p MAX

Power supply adjustment rate

±1%

Load adjustment rate

±2%

Startup delay time

≤ 3S/230Vac @ full load

Output climb time

0.1～100mS/230Vac @ full load

Output hold time

≥10mS/230Vac @ 80% of full load

Dynamic response

<500mV @ 25%~75%~25% of Max. Io, 2.5A/us 300Hz

protect characteristic

Output overvoltage protection

12V≤14V  24V≤27V

Output overcurrent protection

110%-150%of rated output power protection mode:burp mode,automatic recovery after removal of abnormal load conditions

Output short circuit protection

Protection mode:burp mode,automatic recovery after short circuit condition is removed.

Overtemperature protection

power substrate temperature exceeds over temperature protection point (typical values 105 °c) by auxiliary cooling solution,overtemperature shut off output, when dropped to the protect point ,automatic recovery

high pressure test

Withstand voltage test

Input-Output:3000Vac or 4242Vdc input to output test

Input-FG:1500Vac or 2121Vdc input to ground test

Output-FG: 500Vac or 707Vdc Output to ground test

Leakage Current≤5mA MAX  Leakage Current

output signal

Output indication

LED power indication
