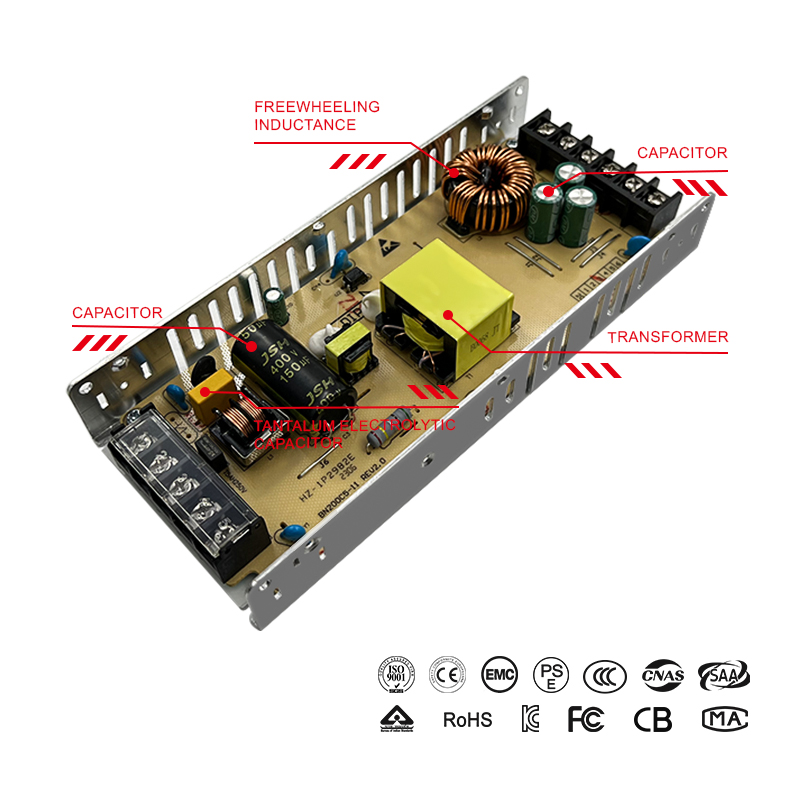

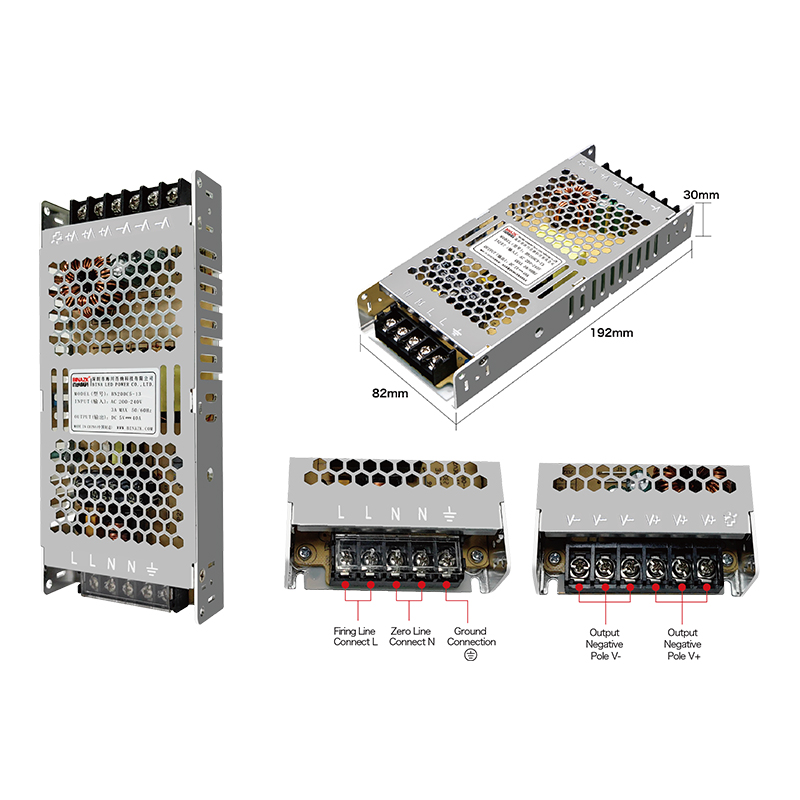

•Ultra-thin-with a height of only 30mm; •Ultra-low temperature startup； •High reliability-100% full load aging test； •Double-tube forward+synchronous rectification technology, conversion efficiency •Suitable for monochrome and full-color display applications. | |||||||

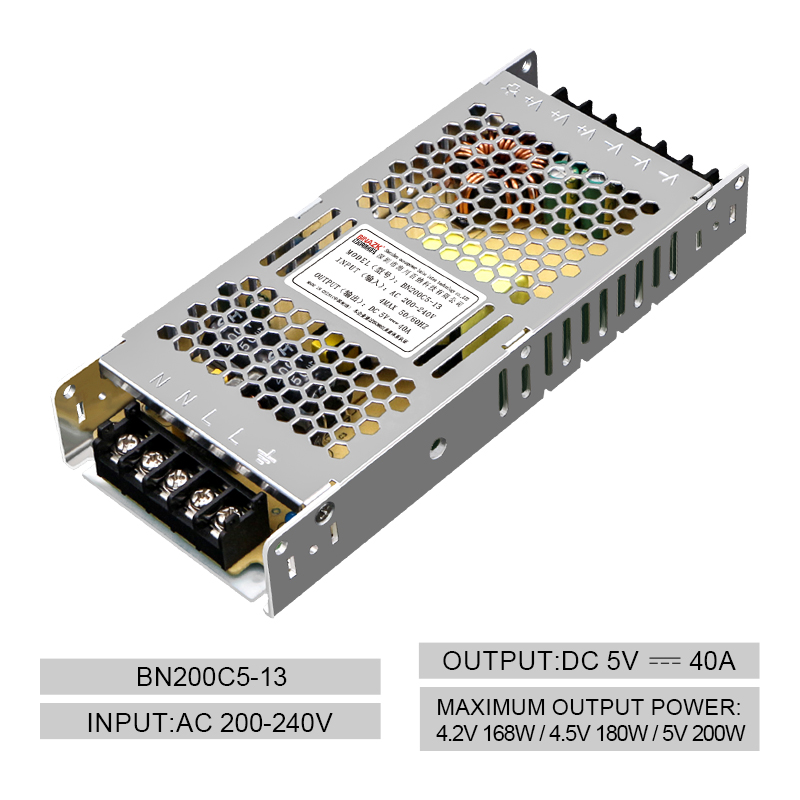

Power model | BN200C4.2-01/13/22 | BN200C4.5-01/13/22 | BN200C5-01/13/22 | ||||
item | function | Detailed parameters | |||||
input characteristic | Input voltage range | 200～240Vac | |||||
Power frequency range | 47～63Hz | ||||||
Maximum input current | 3A MAX | ||||||
power factor | ≥0.6 | ||||||
Full load efficiency | ≥86.5% | ≥87% | ≥88% | ||||
Input impulse current (cold start) | Less than 60A, cold start | ||||||
Leakage current | ＜3.5mA/240Vac | ||||||
output characteristic | output voltage | 4.2V | 4.5V | 5.0V | |||
Output voltage error range | ±3% | ±3% | ±3% | ||||
4.07V～4.33V | 4.35V～4.65V | 4.85V～5.15V | |||||
Output current | 0～40A | 0～40A | 0～40A | ||||
Maximum power output | 168W | 180W | 200W | ||||
Ripple and noise | 250mVp-p MAX | 250mVp-p MAX | 250mVp-p MAX | ||||
Power supply adjustment rate | ±1% | ||||||
Load adjustment rate | ±2% | ||||||
Startup delay time | ≤ 3S/230Vac @ full load | ||||||
Output climb time | 0.1～100mS/230Vac @ full load | ||||||
Output hold time | ≥10mS/230Vac @ 80% of full load | ||||||
protect characteristic | Output overcurrent protection | 120%-170%of rated output power protection mode:burp mode,automatic recovery after removal of abnormal load conditions | |||||
Output short circuit protection | Protection mode:burp mode,automatic recovery after short circuit condition is removed. | ||||||
high pressure test | Withstand voltage test | Input-Output:2000Vac or 2828Vdc input to output test Input-FG:1500Vac or 2121Vdc input to ground test Output-FG: 500Vac or 707Vdc Output to ground test Leakage Current≤5mA MAX Leakage Current | |||||
output signal | Output indication | LED power indication | |||||
•Ultra-thin-with a height of only 30mm; •Ultra-low temperature startup； •High reliability-100% full load aging test； •Double-tube forward+synchronous rectification technology, conversion efficiency •Suitable for monochrome and full-color display applications. | |||||||
Power model | BN200C4.2-01/13/22 | BN200C4.5-01/13/22 | BN200C5-01/13/22 | ||||
item | function | Detailed parameters | |||||
input characteristic | Input voltage range | 200～240Vac | |||||
Power frequency range | 47～63Hz | ||||||
Maximum input current | 3A MAX | ||||||
power factor | ≥0.6 | ||||||
Full load efficiency | ≥86.5% | ≥87% | ≥88% | ||||
Input impulse current (cold start) | Less than 60A, cold start | ||||||
Leakage current | ＜3.5mA/240Vac | ||||||
output characteristic | output voltage | 4.2V | 4.5V | 5.0V | |||
Output voltage error range | ±3% | ±3% | ±3% | ||||
4.07V～4.33V | 4.35V～4.65V | 4.85V～5.15V | |||||
Output current | 0～40A | 0～40A | 0～40A | ||||
Maximum power output | 168W | 180W | 200W | ||||
Ripple and noise | 250mVp-p MAX | 250mVp-p MAX | 250mVp-p MAX | ||||
Power supply adjustment rate | ±1% | ||||||
Load adjustment rate | ±2% | ||||||
Startup delay time | ≤ 3S/230Vac @ full load | ||||||
Output climb time | 0.1～100mS/230Vac @ full load | ||||||
Output hold time | ≥10mS/230Vac @ 80% of full load | ||||||
protect characteristic | Output overcurrent protection | 120%-170%of rated output power protection mode:burp mode,automatic recovery after removal of abnormal load conditions | |||||
Output short circuit protection | Protection mode:burp mode,automatic recovery after short circuit condition is removed. | ||||||
high pressure test | Withstand voltage test | Input-Output:2000Vac or 2828Vdc input to output test Input-FG:1500Vac or 2121Vdc input to ground test Output-FG: 500Vac or 707Vdc Output to ground test Leakage Current≤5mA MAX Leakage Current | |||||
output signal | Output indication | LED power indication | |||||
