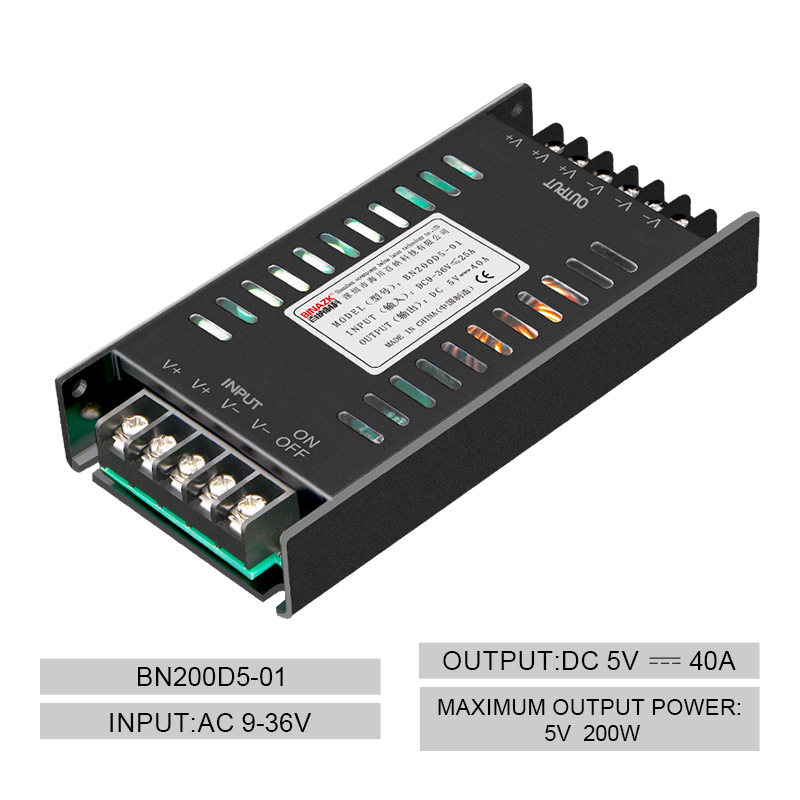

BN200D5-01

Power supply model

BN300D4.2-02

BN300D4.5-02

BN300D5-02

Item

function

Detailed parameters

input characteristic

Input Voltage range

9～36Vdc   Typical values:12V  24V

Power frequency range

100～120KHz

Maximum input current

35A MAX

Full load efficiency

≥87%

≥88%

≥89%

Input impulse current (cold start)

Less than 100A, cold start

output characteristic

output voltage

4.2V

4.5V

5.0V

Output voltage error range

±3%

±3%

±3%

4.07V～4.33V

4.35V～4.65V

4.85V～5.15V

Output current

0～60A

0～60A

0～60A

Maximum output power

250W

270W

300W

Ripple noise

200mVp-p MAX

200mVp-p MAX

200mVp-p MAX

Power regulation rate

±1%

Load adjustment rate

±2%

Load adjustment rate

±2%

Output climb time

0.1～100mS/12Vdc @ full load

Output hold time

≥10mS/12Vdc @ 80% of full load

protect characteristic

Output overcurrent protection

110%-160%of rated output power protection mode:burp mode,automatic recovery after removal

of abnormal load conditions

Output short circuit protection

Protection mode:burp mode,automatic recovery after short circuit condition is removed.

Output overvoltage protection

output voltage is higher than rated voltage more than 2%,power supply locks automatically

Input reverse connect protection

Input positive and negative reverse connection,power supply does not start

Over temperature protection

power supply works beyond the rated power,over temperature protection function activated

output signal

Output indication

LED LED power indication
