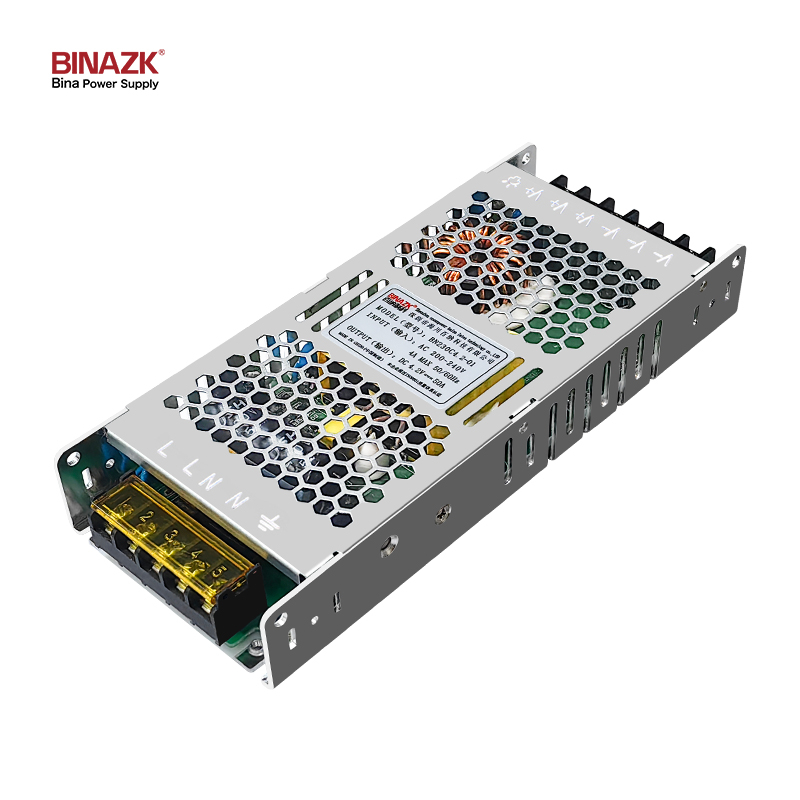

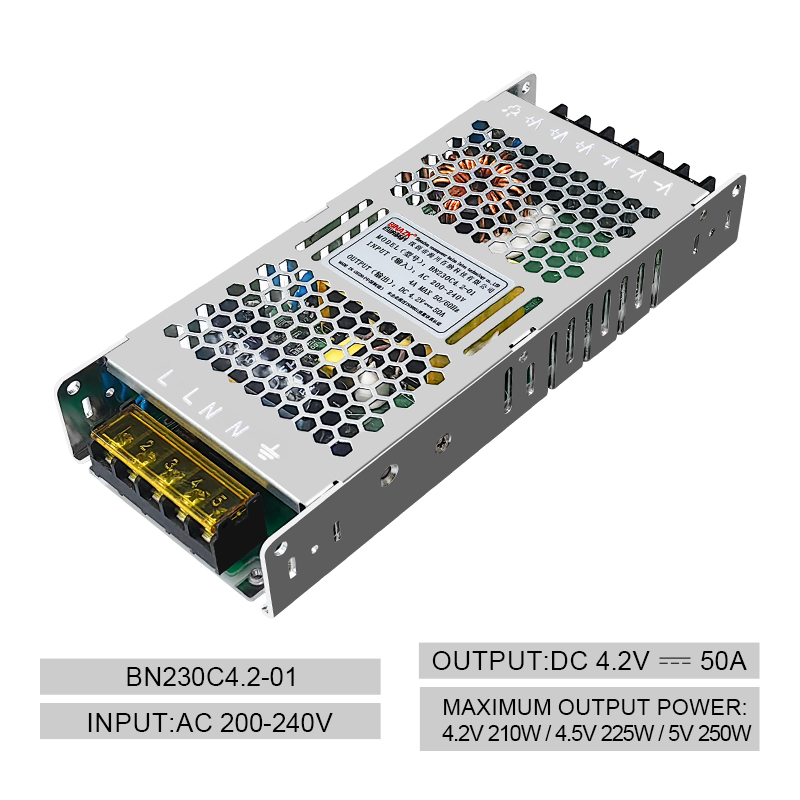

BN230C4.2-01

item

function

Detailed parameters

input
characteristic

Input voltage range

200～240Vac

Power frequency range

47～63Hz

Maximum input current

3.5A MAX

power factor

≥0.6

Full load efficiency

≥86.5%

≥87%

≥88%

Input impulse current (cold start）

Less than 100A, cold start

Leakage current

＜3.5mA/240Vac

output
characteristic

output voltage

4.2V

4.5V

5.0V

Output voltage error range

±3%

±3%

±3%

4.07V～4.33V

4.35V～4.65V

4.85V～5.15V

Output current

0～50A

0～50A

0～50A

Maximum power output

210W

225W

250W

Ripple and noise

200mVp-p MAX

200mVp-p MAX

200mVp-p MAX

Power supply adjustment rate

±1%

Load adjustment rate

±2%

Startup delay time

≤ 3S/230Vac @ full load

Output climb time

0.1～100mS/230Vac @ full load

Output hold time

≥10mS/230Vac @ 80% of full load

protect characteristic

Output overcurrent protection

110%-160%of rated output power protection mode:burp mode,automatic recovery after removal of abnormal load conditions

Output short circuit protection

Protection mode:burp mode,automatic recovery after short circuit condition is removed.

high pressure test

Withstand voltage test

Input-Output:3000Vac or 4242Vdc input to output test

Input-FG:1500Vac or 2121Vdc input to ground test

Output-FG: 500Vac or 707Vdc Output to ground test

Leakage Current≤5mA MAX Leakage Current

output signal

Output indication

LED power indication
