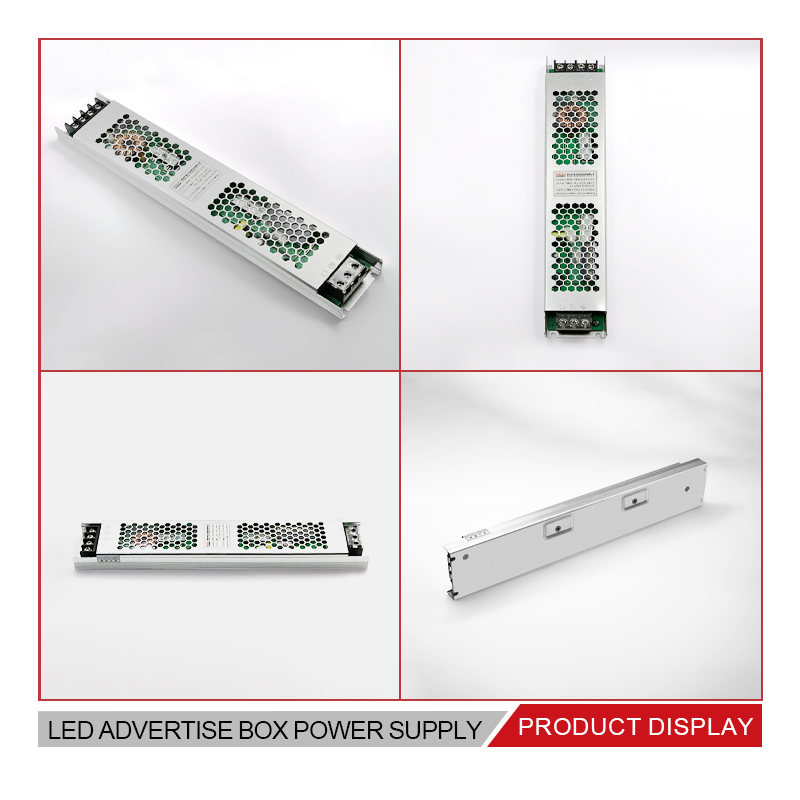

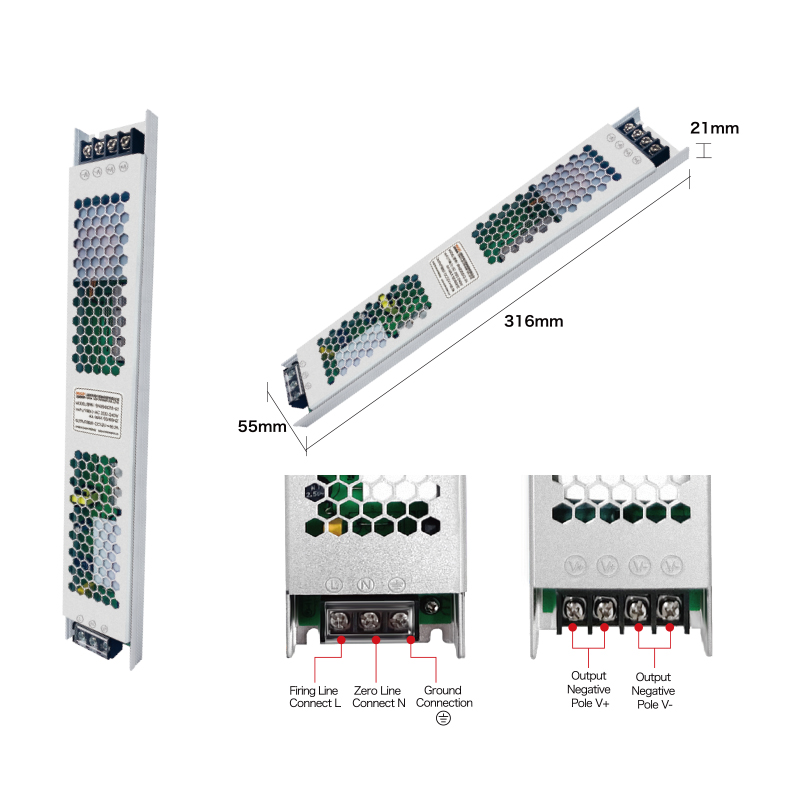

Features •Ultra-thin-with a height of only 21.5mm •Ultra-low temperature -30℃ startup •High reliability-100% full load aging test; •Green LED light - indicating the working status of the power supply •Suitable for LED lighting, electronic subtitle screens, and industrial equipment applications. | ||||||

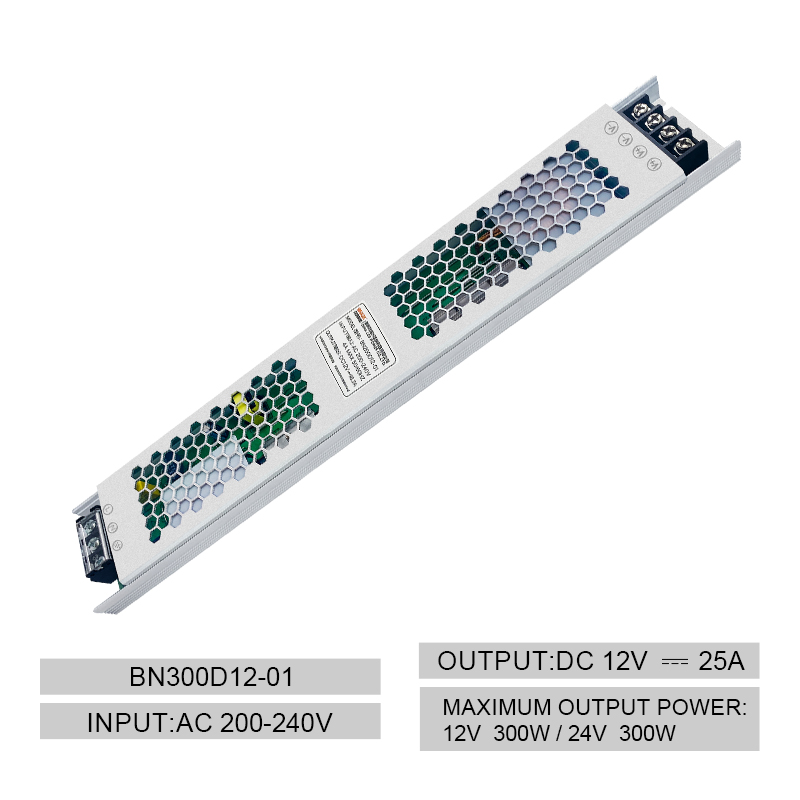

Power model | BN300D12-01 | BN300D24-01 | ||||
item | function | Detailed parameters | ||||
input characteristic | Input voltage range | 200～240Vac | ||||
Power frequency range | 47～63Hz | |||||
Maximum input current | 3A MAX | |||||
power factor | ≥0.5 | |||||
Full load efficiency | ≥85% | ≥87% | ||||
Input impulse current (cold start) | Less than 100A, cold start | |||||
Leakage current | ＜3.5mA/240Vac | |||||
Output characteristic | output voltage | 12V | 24V | |||
Output voltage error range | ±3% | ±3% | ||||
11.4V～12.6V | 22.8V～25.2V | |||||
Output current | 0～25A | 0～12.5A | ||||
Maximum power output | 300W | 300W | ||||
Ripple and noise | 250mVp-p MAX | 250mVp-p MAX | ||||
Power supply adjustment rate | ±1% | |||||
Load adjustment rate | ±2% | |||||
Startup delay time | ≤ 3S/230Vac @ full load | |||||
Output climb time | 0.1～100mS/230Vac @ full load | |||||
Output hold time | ≥10mS/230Vac @ 80% of full load | |||||
protect characteristic | Output overcurrent protection | 120%-160%of rated output power protection mode:burp mode,automatic recovery after removal of abnormal load conditions | ||||
Output short circuit protection | Protection mode:burp mode,automatic recovery after short circuit condition is removed. | |||||
high pressure test | Withstand voltage test | Input-Output:3000Vac or 4242Vdc Input-FG:1500Vac or 2121Vdc Output-FG: 500Vac or 707Vdc Leakage Current≤5mA MAX | ||||
output signal | Output indication | LED power indication | ||||
