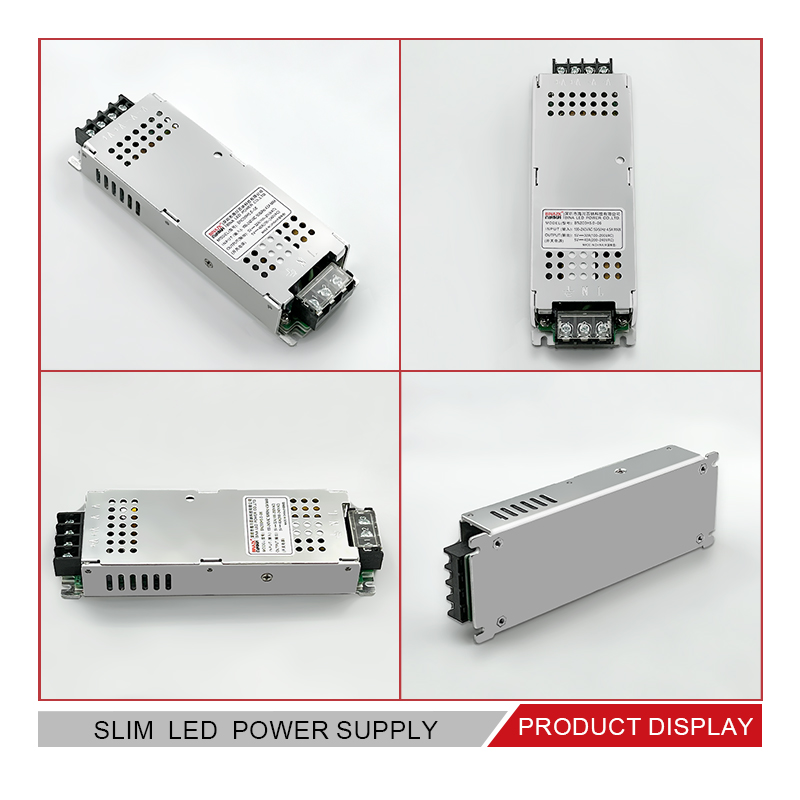

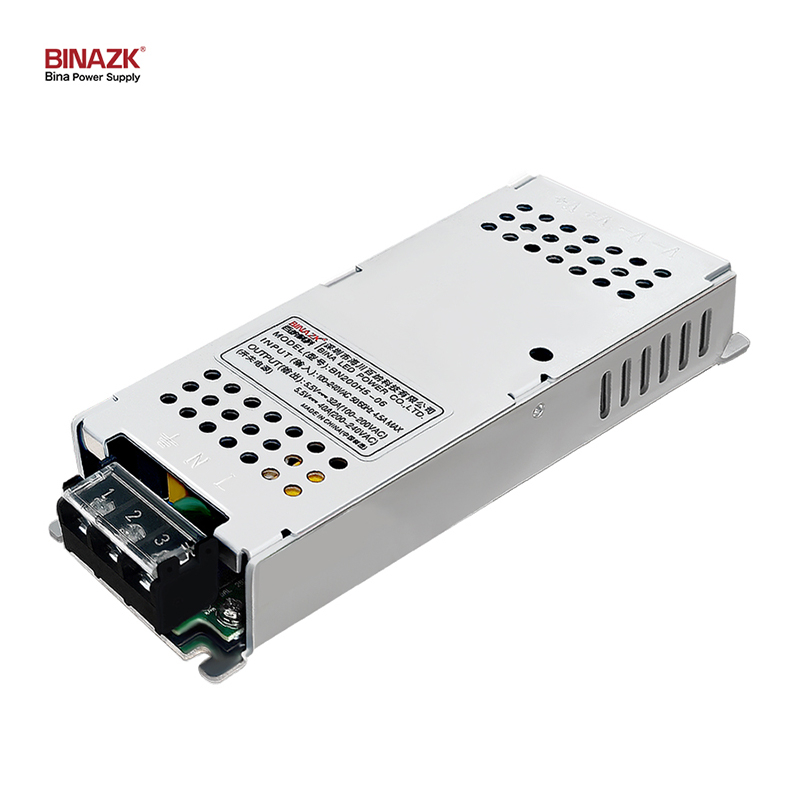

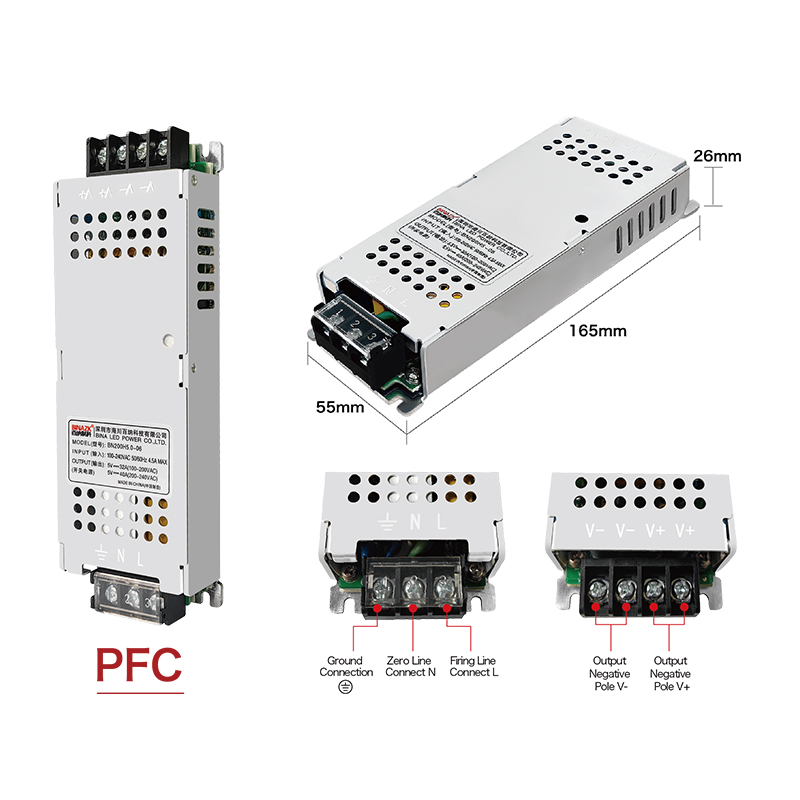

•Super small size（165×55×26mm） •Ultralow temperature startup; •High reliability-100% full load aging test； •Soaking treatment with full conformal coating •Applicable to Small spacing/Special screen/Transparent screen/Die-casting box etc. | |||||||

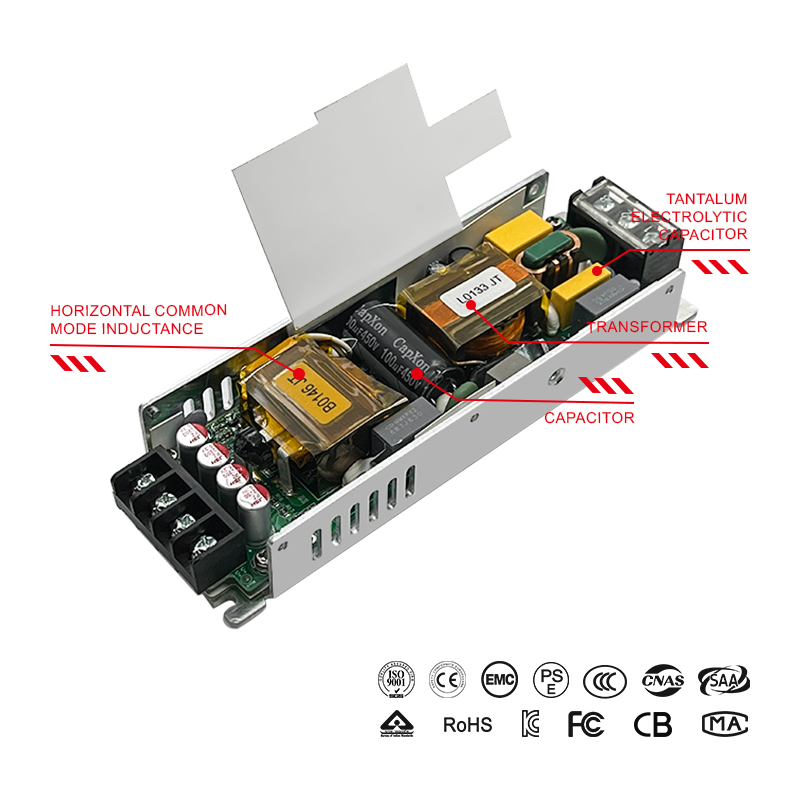

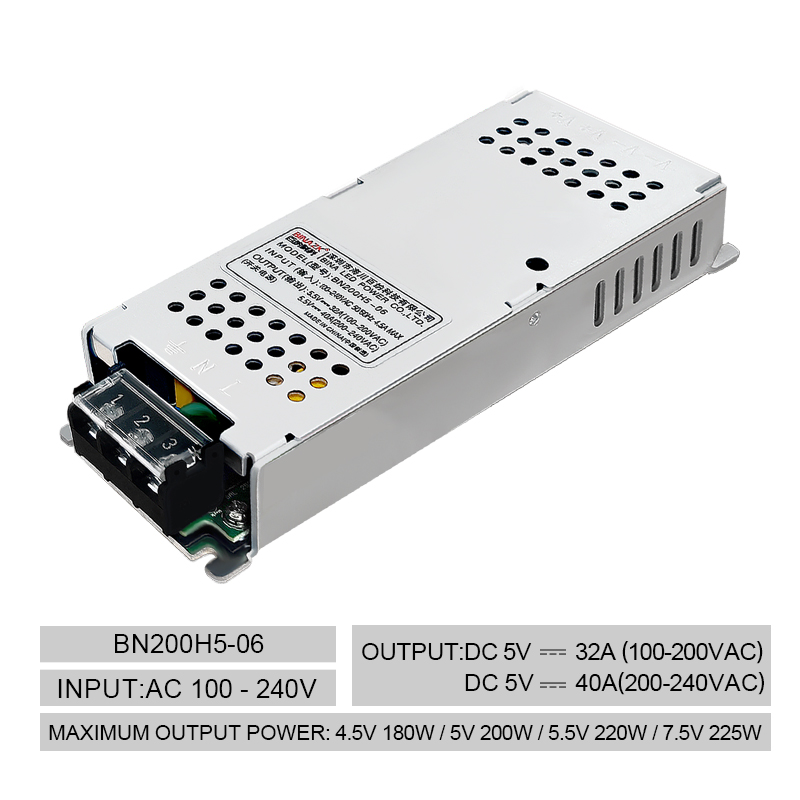

Power model | BN200H4.5-06 | BN200H5.0-06 | BN200H5.5-06 | BN200H7.5-06 | |||
item | function | Detailed parameters | |||||
characteristic | Input voltage range | 100-240Vac | |||||
Power frequency range | 50/60Hz | ||||||
Maximum input current | 4.5A MAX | ||||||
power factor | >0.95 220Vac | ||||||
Full load efficiency | >88%.@220Vac | >90%.@220VAC | >90%.@220VAC | >91%.@220VAC | |||
Input impulse current (cold start) | 80A@220V （cold start） | ||||||
Leakage current | ＜3.5mA/240Vac | ||||||
output characteristic | output voltage | 4.5V | 5.0V | 5.5V | 7.5V | ||
Output voltage error range | ±3% | ±3% | ±3% | ±3% | |||
4.365V-4.635V | 4.85V-5.15V | 5.335V-5.665V | 7.275V-7.725V | ||||
Output current | 100-200VAC 32A 200-240VAC 40A | 100-200VAC 32A 200-240VAC 40A | 100-200VAC 32A 200-240VAC 40A | 100-200VAC 21A 200-240VAC 30A | |||
Maximum power output | 180W | 200W | 220W | 225W | |||
Ripple and noise | 300mVp-p MAX | 300mVp-p MAX | 300mVp-p MAX | 300mVp-p MAX | |||
Power supply adjustment rate | ±1% | ||||||
Load adjustment rate | ±2% | ||||||
Startup delay time | ≤ 3S/230Vac @ full load | ||||||
Output climb time | 0.1～100mS/230Vac @ full load | ||||||
Output hold time | ≥10mS/230Vac @ 80% of full load | ||||||
Dynamic Response | <500mV @ 25%~75%~25% of Max. Io, 2.5A/us 300Hz | ||||||
protect characteristic | Output Overvoltage Protection | ≤6.5V Protection mode:burp mode | |||||
Output overcurrent protection | 110%-150%of rated output power protection mode:burp mode,automatic recovery after removal of abnormal load conditions | ||||||
Output short circuit protection | Protection mode:burp mode,automatic recovery after short circuit condition is removed. | ||||||
over temperature protection | 115℃±5℃Over-temperature shutdown output, automatically recover when the temperature drops to the protection point | ||||||
high pressure test | Withstand voltage test
| Input-Output:3000Vac or 4242Vdc input to output test Input-FG:1500Vac or 2121Vdc input to ground test Output-FG: 500Vac or 707Vdc Output to ground test Leakage Current≤5mA MAX Leakage Current | |||||
Safety regulations and electromagnetic compatibility | safety regulations | ||||||
electromagnetic interference | |||||||
Electromagnetic Immunity | |||||||
output signal | Output indication | Blue LED power indication | |||||
•Super small size（165×55×26mm） •Ultralow temperature startup; •High reliability-100% full load aging test； •Soaking treatment with full conformal coating •Applicable to Small spacing/Special screen/Transparent screen/Die-casting box etc. | |||||||
Power model | BN200H4.5-06 | BN200H5.0-06 | BN200H5.5-06 | BN200H7.5-06 | |||
item | function | Detailed parameters | |||||
characteristic | Input voltage range | 100-240Vac | |||||
Power frequency range | 50/60Hz | ||||||
Maximum input current | 4.5A MAX | ||||||
power factor | >0.95 220Vac | ||||||
Full load efficiency | >88%.@220Vac | >90%.@220VAC | >90%.@220VAC | >91%.@220VAC | |||
Input impulse current (cold start) | 80A@220V （cold start） | ||||||
Leakage current | ＜3.5mA/240Vac | ||||||
output characteristic | output voltage | 4.5V | 5.0V | 5.5V | 7.5V | ||
Output voltage error range | ±3% | ±3% | ±3% | ±3% | |||
4.365V-4.635V | 4.85V-5.15V | 5.335V-5.665V | 7.275V-7.725V | ||||
Output current | 100-200VAC 32A 200-240VAC 40A | 100-200VAC 32A 200-240VAC 40A | 100-200VAC 32A 200-240VAC 40A | 100-200VAC 21A 200-240VAC 30A | |||
Maximum power output | 180W | 200W | 220W | 225W | |||
Ripple and noise | 300mVp-p MAX | 300mVp-p MAX | 300mVp-p MAX | 300mVp-p MAX | |||
Power supply adjustment rate | ±1% | ||||||
Load adjustment rate | ±2% | ||||||
Startup delay time | ≤ 3S/230Vac @ full load | ||||||
Output climb time | 0.1～100mS/230Vac @ full load | ||||||
Output hold time | ≥10mS/230Vac @ 80% of full load | ||||||
Dynamic Response | <500mV @ 25%~75%~25% of Max. Io, 2.5A/us 300Hz | ||||||
protect characteristic | Output Overvoltage Protection | ≤6.5V Protection mode:burp mode | |||||
Output overcurrent protection | 110%-150%of rated output power protection mode:burp mode,automatic recovery after removal of abnormal load conditions | ||||||
Output short circuit protection | Protection mode:burp mode,automatic recovery after short circuit condition is removed. | ||||||
over temperature protection | 115℃±5℃Over-temperature shutdown output, automatically recover when the temperature drops to the protection point | ||||||
high pressure test | Withstand voltage test
| Input-Output:3000Vac or 4242Vdc input to output test Input-FG:1500Vac or 2121Vdc input to ground test Output-FG: 500Vac or 707Vdc Output to ground test Leakage Current≤5mA MAX Leakage Current | |||||
Safety regulations and electromagnetic compatibility | safety regulations | ||||||
electromagnetic interference | |||||||
Electromagnetic Immunity | |||||||
output signal | Output indication | Blue LED power indication | |||||
