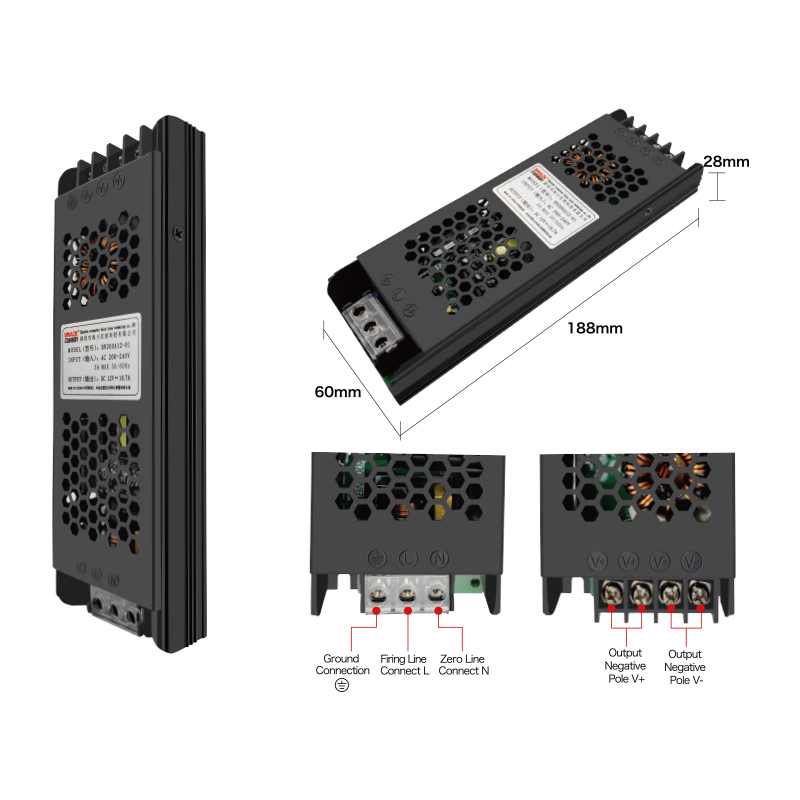

Features •Ultra-thin-with a height of only 28mm •Ultra-low temperature startup •High reliability-100% full load aging test •Blue LED light - indicating the working status of the power supply •Suitable for applications such as lighting equipment, LED display screens, luminous characters, sign advertisements, light strips, etc. | ||||||

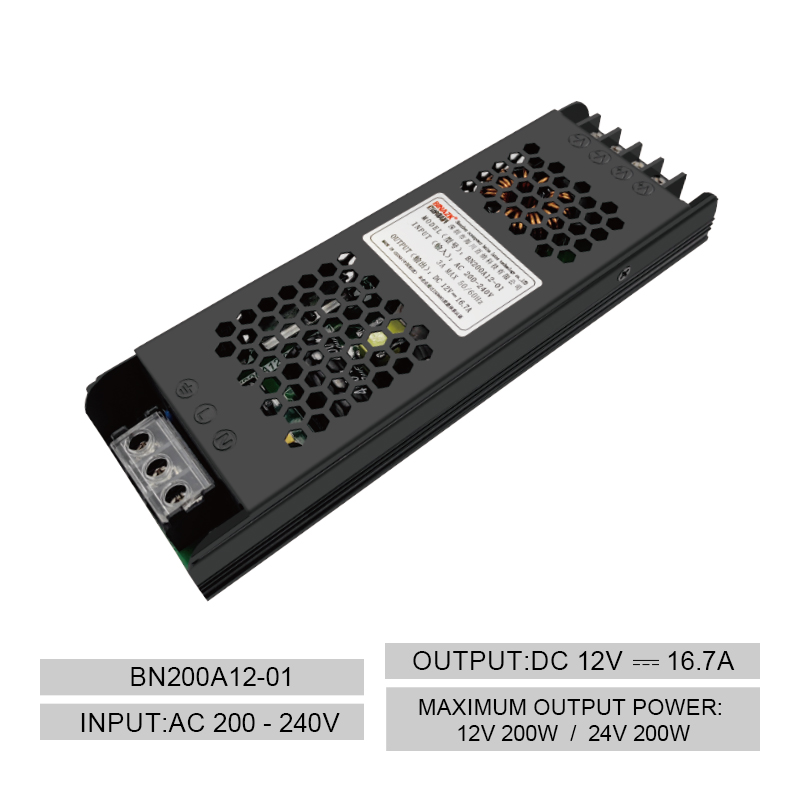

Power model | BN200A12-01 | BN200A24-01 | ||||
item | function | Detailed parameters | ||||
input characteristic | Input voltage range | 200～240Vac | ||||
Power frequency range | 47～63Hz | |||||
Maximum input current | 3A MAX | |||||
power factor | ≥0.5 | |||||
Full load efficiency | ≥84% | ≥86% | ||||
Input impulse current (cold start) | Less than 100A, cold start | |||||
Leakage current | ＜3.5mA/240Vac | |||||
Output characteristics
| output voltage | 12V | 24V | |||
Output voltage error range | ±3% | ±3% | ||||
11.4V～12.6V | 22.8V～25.2V | |||||
Output current | 0～16.7A | 0～8.3A | ||||
Maximum power output | 200W | 200W | ||||
Ripple and noise | 250mVp-p MAX | 250mVp-p MAX | ||||
Power supply adjustment rate | ±1% | |||||
Load adjustment rate | ±2% | |||||
Startup delay time | ≤ 3S/230Vac @ full load | |||||
Output climb time | 0.1～100mS/230Vac @ full load | |||||
Output hold time | ≥10mS/230Vac @ 80% of full load | |||||
Protective characteristics | Output overcurrent protection | 120%-150%of rated output power protection mode:burp mode,automatic recovery after removal of abnormal load conditions | ||||
Output short circuit protection | Protection mode:burp mode,automatic recovery after short circuit condition is removed.
| |||||
High voltage testing | Withstand voltage test
| Input-Output:2500Vac or 3535Vdc Input-FG:1500Vac or 2121Vdc Output-FG: 500Vac or 707Vdc Leakage Current≤5mA MAX | ||||
Output signal | Output indication | LED power indication | ||||
